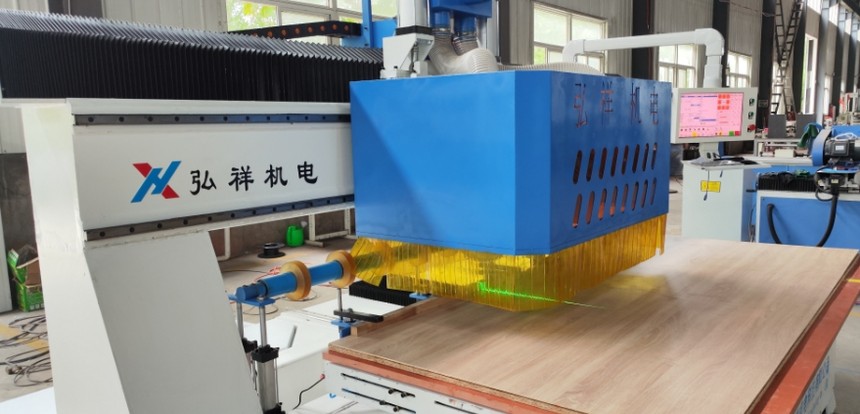

CNC panel saw

1. Performance characteristics：


CNC panel saws can complete vertical and horizontal reciprocating cutting, and can completely replace electronic cutting saws that can only cut in one direction and manual push table saws with higher costs.The efficiency is not only more than 6 times that of manual table saws, but also can effectively prevent accidents caused by saw blades and improve the personal safety of operators.The system is simple to operate, easy to learn, and the size can be entered in the form of a table. General workers can operate and process without professionals and other advantages.




Technical parameters：

Processing size

1220*2440*100mm、1500*2440*100、1000*2440*100mm

Rail slider

Imported linear square rail, slider

Transmission screw

Taiwan TBI ball screw

Transmission rack

Imported high-precision helical gear rack

Speed reducer

Planetary reducer

Spindle motor

7.5kw*2 sets of special motors for aluminum shell panel saws

Spindle saw blade

Alloy saw blade

Control system

Taiwan Baoyuan

Drive mode

Servo drive/servo motor

Operation interface

Independent research and development to simplify the operation interface

Control appliances

Delixi, Chint, Omron

Bed structure

Thick-walled square steel (heavy duty)

Empty line speed

0-30m/min speed adjustable

Processing speed

0-30m/min speed adjustable

Number of pressure claws

6 sets, can be increased or decreased according to the actual situation

Operating voltage

380v/50HZ
