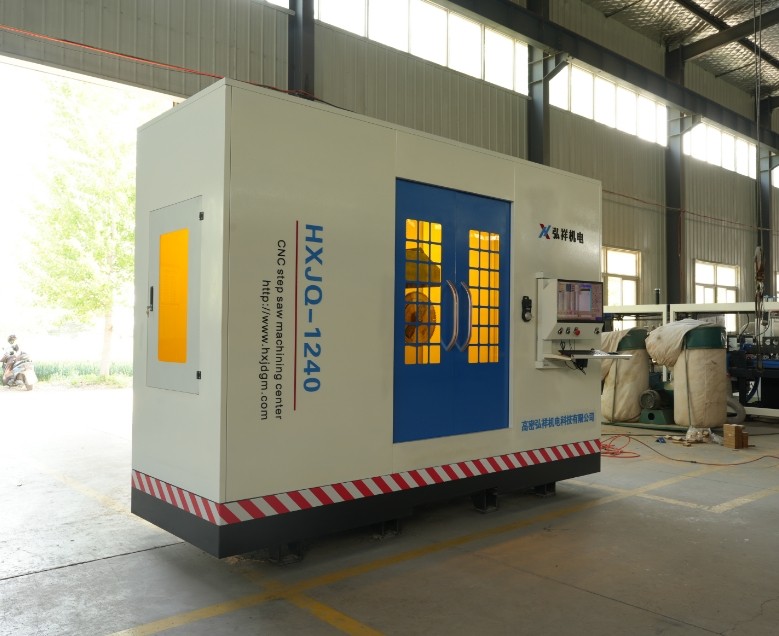

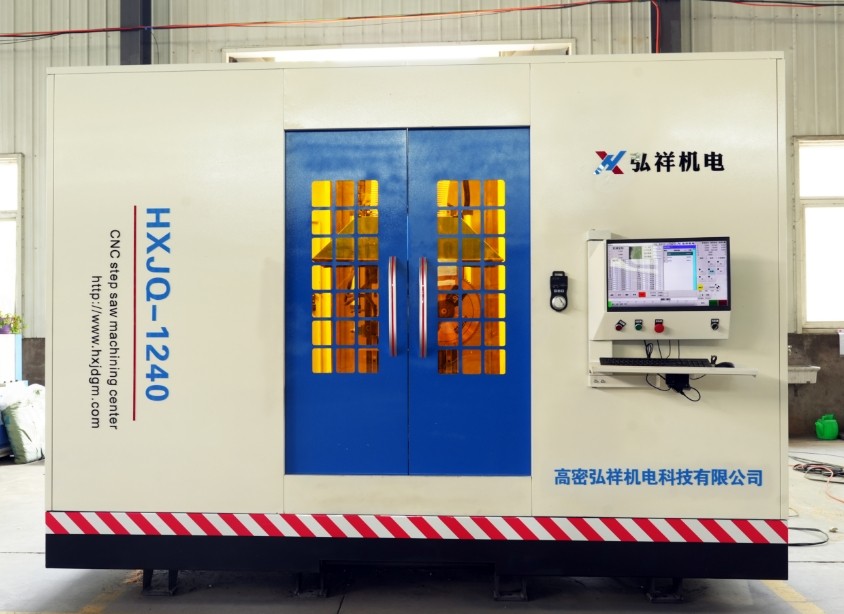

CNC step saw

1. The processing efficiency has been greatly improved, which has changed the defect that ordinary machining centers are limited by the amount of knives, which is 3.5 times the efficiency of ordinary machining centers.More than times.


2. The operation is simple, just enter the processing parameters according to the drawings.


3. Energy saving and environmental protection, with a total power of 19KW.It saves more than 50% energy than ordinary machining centers.


4. Balanced cylinders are added on both sides of the saw head to make the sawing more stable, greatly improving the sawing accuracy and the service life of related accessories.


5. The slider of the moving parts is increased to strengthen the stable operation and improve the sawing accuracy.


6. The rack is strictly aging twice, which eliminates the internal deformation stress of the components to the maximum extent, and effectively improves the stability of the components.




Technical parameters:

Processing size

1200*400*400mm

Rail slider

Imported linear square rail, slider

Transmission screw

Taiwan TBI ball screw

Transmission rack

Japan imported high-precision helical gear rack

Reducer

High precision planetary reducer

Spindle motor

5.5KW*2 sets of special motors for aluminum shell

Spindle saw blade

Carbide saw blade

Control system

Taiwan Baoyuan

Servo drive

Pure servo drive/servo motor

Operation interface

Independent research and development to simplify the operation interface

Control appliances

Delixi, Zhengtai

Bed structure

Square steel on the rear wall (heavy duty)

Empty line speed

0-30m/min speed adjustable

Processing speed

0-10m/min speed adjustable

Power supply

380v50HZ
